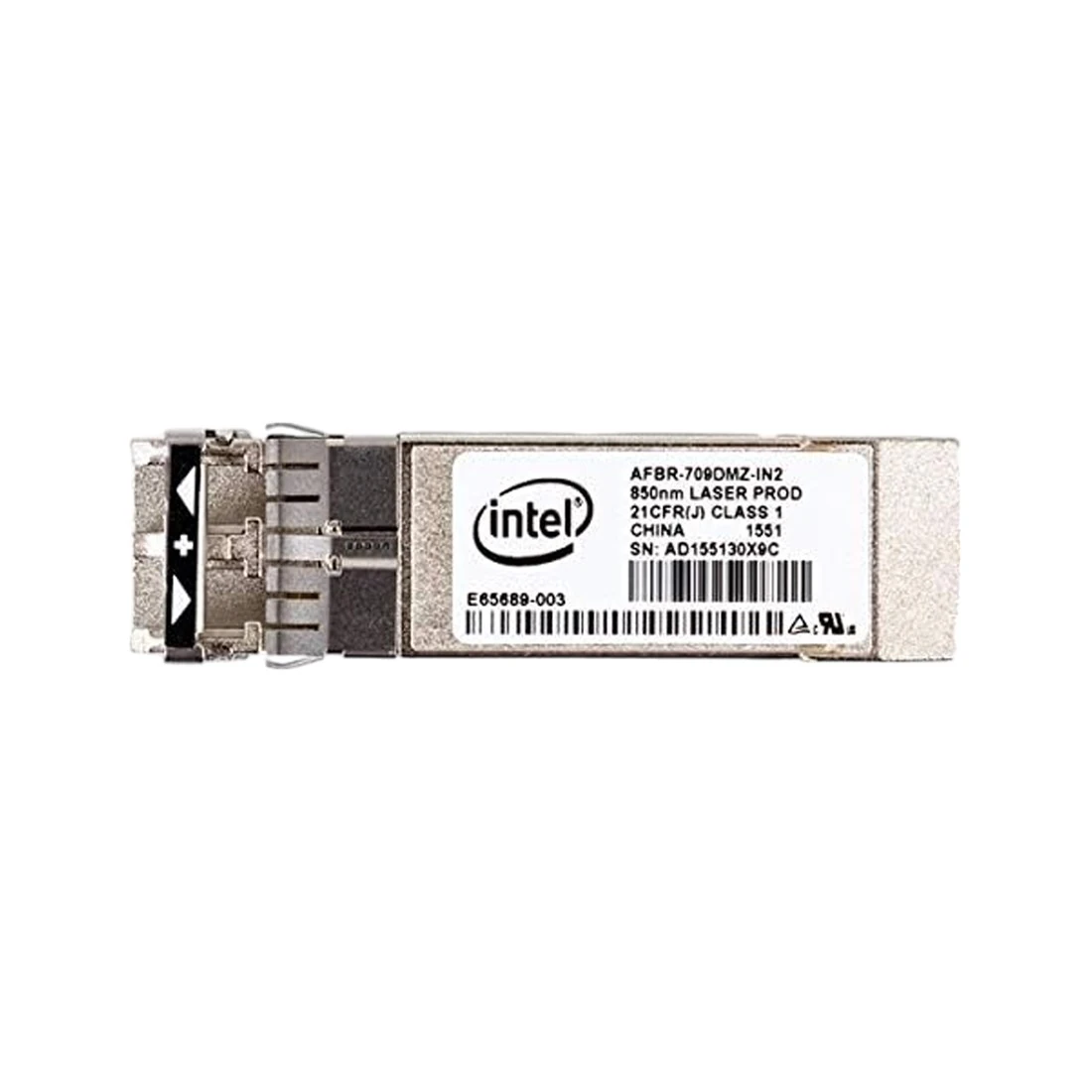

Intel AFBR-709DMZ-IN2 10G SFP+ Transceiver | 10GBASE-SR | 850 nm MMF

The Intel AFBR-709DMZ-IN2 is a high-quality 10Gb SFP+ optical transceiver designed for short-range, high-speed networking over multimode fiber (MMF). Supporting 10GBASE-SR at 850 nm, this module is ideal for data-centre links, server interconnects, and switch-to-switch connections.

Manufactured for Intel by Avago, this is the second source for Intel part number E10GSFPSR — the same optic as the Finisar-made FTLX8571D3BCV-IT. It is dual-rate, running at both 10 Gbps (10GBASE-SR) and 1 Gbps (1000BASE-SX), so it works in 10G SFP+ ports and legacy gigabit SFP ports alike. The module is hot-pluggable, energy efficient, and built for continuous operation, providing a cost-effective solution for upgrading to 10 Gbps fiber connectivity using standard LC duplex multimode cabling.

Perfect for enterprise networks, homelabs, virtualization clusters, and high-throughput storage environments.

⭐ Key Features

• Speed: 10 Gbps (10GBASE-SR) / 1 Gbps (1000BASE-SX)
• Wavelength: 850 nm
• Fiber type: Multimode (MMF)
• Connector: LC Duplex
• Form factor: SFP+ (hot-swappable)
• Short-range optics: Up to ~300 m on OM3, 400 m on OM4
• Digital diagnostics: SFF-8472 DOM support
• Low power consumption (< 1 W)
• Compatible with Intel 10Gb networking equipment

📊 Technical Specifications

• Model: AFBR-709DMZ-IN2
• Intel part number: E10GSFPSR
• Interface: SFP+
• Data rate: 1.25 / 10 Gbps
• Media: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Connector type: LC Duplex
• Reach: Up to 300 m (OM3) / 400 m (OM4)
• Operating temperature: 0–70 °C (commercial)
• Hot-plug support: Yes
• Compliance: RoHS, WEEE

🖥️ Ideal For

• Data-centre networking
• Server-to-server links
• Switch uplinks
• Virtualization & storage clusters (Proxmox, ESXi, Ceph)
• Homelab 10Gb fiber setups
